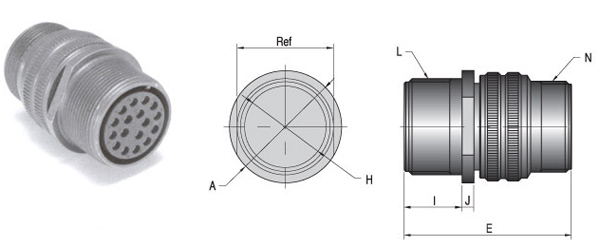

CABLE CONNECTING PLUG
SOLID ENDBELL
MS3101A
MS3101A solid endbell cableconnecting plugs are used for cable extension requirements where monting provision are unnecessary
|
| |

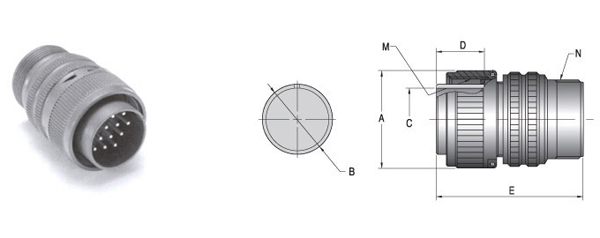

STRAIGHT PLUG
SOLID ENDBELL
MS3106A
MS3106A straight plugs are used with 3100 and 3102 receptacles and 3101 plugs.
|
|

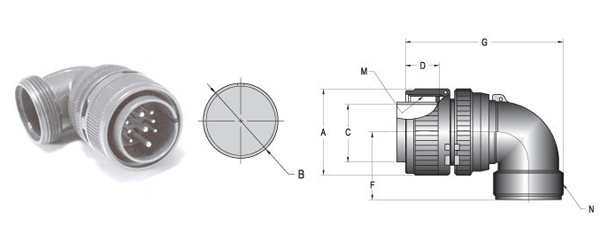

90° ANGLE PLUG
SOLID ENDBELL
MS3108A
MS3108A is avaitablc in size 8S thru 36 only. Either the split or solid or solid endbells on the 3108 are capable of being rotated and locked.
.
|
(mm)
Shell
Size |
Ø A
MAX |
Ø B
+ 0.12
-0.38
(O°D) |
Ø C
Min
(I°D) |
D
+0.12 |
E
Max |
F
Max |
G
Max |
Ø H
+0.38
-0.00
(I°D) |
Ø I
Max |
J
Max |
K
Max |
L,M
Thread |
N
Thread |
|
8S |
21.43 |
9.27 |
6.41 |
13.49 |
37.3 |
23.77 |
44.45 |
9.40 |
9.53 |
1.57 |
13.46 |
1/2-28 UNEF |
1/2-28 UNEF |
|
10S |
24.61 |
11.17 |
8.21 |
13.49 |
38.88 |
25.40 |
44.45 |
11.38 |
9.53 |
1.57 |
16.66 |
5/8-24 UNEF |
5/8-24 UNEF |
|
10SL |
24.61 |
11.33 |
8.21 |
13.49 |
38.88 |
25.40 |
46.02 |
11.38 |
9.53 |
1.57 |
16.66 |
5/8-24 UNEF |
5/8-24 UNEF |
|
12S |
26.97 |
14.10 |
11.43 |
〃 |
42.87 |
26.97 |
50.80 |
14.15 |
〃 |
〃 |
19.43 |
3/4-20 UNEF |
〃 |
|
12 |
〃 |
〃 |
〃 |
18.26 |
52.37 |
〃 |
57.15 |
〃 |
15.88 |
1.98 |
〃 |
〃 |
〃 |
|
14S |
29.36 |
17.15 |
13.37 |
13.49 |
42.87 |
28.27 |
53.97 |
17.38 |
9.53 |
1.83 |
22.60 |
7/8-20 UNEF |
3/4-20 UNEF |
|
14 |
〃 |
〃 |
〃 |
18.26 |
52.37 |
〃 |
58.72 |
〃 |
15.88 |
1.98 |
〃 |
〃 |
〃 |
|
16S |
31.75 |
20.45 |
16.54 |
13.49 |
42.87 |
30.17 |
60.32 |
20.50 |
9.53 |
1.83 |
25.78 |
1-20 UNEF |
7/8-20 UNEF |
|
16 |
〃 |
〃 |
〃 |
18.26 |
52.37 |
〃 |
65.07 |
〃 |
15.88 |
1.98 |
〃 |
〃 |
〃 |
|
18 |
34.13 |
23.62 |
19.72 |
〃 |
〃 |
33.32 |
68.27 |
23.68 |
〃 |
2.77 |
28.95 |
11/8-20 UNEF |
1-20 UNEF |
|
20 |
37.31 |
26.67 |
23.68 |
〃 |
55.57 |
34.92 |
76.98 |
26.88 |
〃 |
〃 |
32.13 |
11/4-18 UNEF |
13/16-18 UNEF |
|
22 |
40.48 |
29.85 |
26.07 |
〃 |
〃 |
〃 |
〃 |
30.03 |
〃 |
2.97 |
35.30 |
13/8-18 UNEF |
〃 |
|
24 |
43.66 |
33.02 |
34.80 |
〃 |
58.72 |
39.67 |
〃86.51 |
33.20 |
〃 |
〃 |
38.48 |
11/2-18 UNEF |
17/16-18 UNEF |
|
28 |
50.01 |
38.61 |
34.80 |
〃 |
〃 |
〃 |
〃 |
38.77 |
〃 |
〃 |
44.83 |
13/4-18 UNEF |
〃 |
|
32 |
56.36 |
44.96 |
41.15 |
〃 |
61.92 |
47.62 |
95.25 |
45.12 |
〃 |
〃 |
51.18 |
2-18 UNS |
13/4-18 UNS |
|
36 |
62.71 |
50.29 |
46.69 |
〃 |
〃 |
52.37 |
100.02 |
50.68 |
〃 |
〃 |
57.65 |
21/4-16 UN |
2-18 UNS |
|
40 |
69.06 |
56.64 |
52.25 |
〃 |
〃 |
53.97 |
〃 |
57.03 |
〃 |
〃 |
〃 |
21/2-16 UN |
21/4-16 UN |
|
| |
