미국 군사표준 커넥터는 항공용의 전기, 전자기기의 접속용으로 개발되었으나, 최근에 이르러서는 일반
산업분야에도 적용되어 높은 성능과 다양한 품종, 그리고 저렴한 가격으로 가장 일반적인 용도로 사용되고
있습니다.


The connector of U.S military standard has been developed for the electrical and electronic connections of the aero equipment, but recently it is applied to the industry and used in general areas with high quality ,
various grade and low-cost.


통신장비, 수송차량, 선박, 철도, 항공기 관련장비, 산업기기 및 공작기계, 계측기 · 의료기기 · 컴퓨터 등
기타 각종 전기 전자기기.



Communication equipment, transport vehicle, ship, railroad, aeroplane related equipment, industry and machinery devices, measurement and medical equipment, computer etc. .

A screw coupling type

We need no tools for coupling and assembling of the connectors.
It is simple to couple the connector by inserting the coupling
nut of barrel into the receptacle and turning to the screw direction

Valid Contact numbers : 1 ~ 100

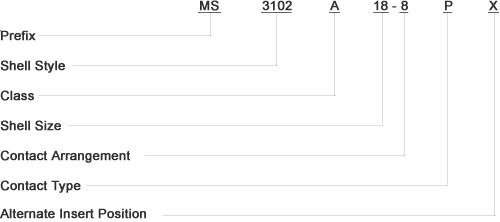

Prefix

MS is the acronym of Yeonhab Standard and the application standard is MIL-C-5015.

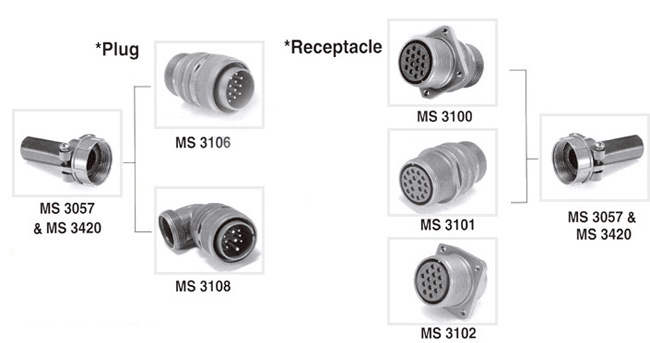

Shell Types

3100

    Wall mounting receptacle

3101

    Cable connecting plug

3102

    Box mounting receptacle

3106

    Straight plug

3108

    90° angled plug



Class

MS Class

Application

A

    general - Solid Endbell

B

    general - Split Endbell

C

    pressure resistant - Receptacle

E/F/R

    environment-resistant

K

    Heat and Flame resistant


Material and Finish
Shell - pure Aluminum Alloy die casting, olive drab over cadmium plate or Zinc plate
Insulators - Thermosetting plastic(epoxy), polychloroprene("A" class only)
Contact - copper alloy or brass, 100μ-inch silver plate


Shell Size
8s, 10s, 10SL,12s, 12, 14s, 14, 16s, 16, 18, 20, 22, 24, 28, 32, 36, 40, 44, 48


Contact Arrangement
See, MIL-STD-1651A


Contact Style
P - PIN S - SOCKET


Alternate Insert Position
W. X. Y. Z. (Ref. : MIL-STD-1651A)








Contact size

Outer diameter of pin contact (±0.03)

Current(Amps)

허용전류

Nominal current

#16 / #16S

1.59

22

13

#12

2.39

41

23

# 8

3.60

74

46

# 4

5.72

135

80

# 0

9.07

245

150

Voltage

Code letter

Max. voltage for test
(해발고도)
(ACV rms)

Nominal voltage

( DCV rms )

( ACV rms )

INST

1000

  250

  200

A

2000

  700

  500

D

2800

1250

900

E

3500

1750

1250

B

4500

2450

1750

C

7000

4200

3000

Admissible wire

Contact

Admissible wire

Size

Outer diameter of solder (over)

Size (AWG)

#16 / #16S

  1.75

#16 ∼ #20

# 12

  2.84

#12 ,    #14

# 8

  5.20

#8 ,      #10

# 4

  8.33

#4 ,      #6

# 0

11.79

#0 ,      #2

Insulation resistance

5,000㏁ Minimum(at 25℃)

Temperature range

-55℃   to   125℃

Durability

500 Cycle Mating / Unmating



Damp heat
   - MIL-STD-202 method 107
   - temperature range (-55℃ to 125℃)

Moisture
   - varying humidity : 95%±3%
   - temperature : 71℃±2℃
   - time : 14days

Vibration
   - MIL-STD-1344 method 2005
   - 10 ~ 500Hz or 10G units
   - sweep time : 15minutes
   - test current : 100㎃

Pulse impulse
   - 1/2 sine wave pulse of 50G units
   - time : 11±1milli sec
   - test current : 100mA

Salt spray
   - MIL-STD-1344 method 1001
   - salt concentration : 5%
   - time : 48Hours

Contact retention
   -  size 16:  2 OZ min,  48 OZ max
   -  size 12:  3 OZ min,  80 OZ max
   -  size 8:  5 OZ min, 160 OZ max
   -  size 4: 10 OZ min, 240 OZ max
   -  size 0: 15 OZ min, 320 OZ max
