Home > 제품정보> MS커넥터

CONTACTS

Contact size	Type	MS Number	Color Bands
Contact size	Type	MS Number	1st	2nd	3rd
20	Socket	M39029/5-115	Brown	Brown	Green
20	Pin	M39029/4-110	Brown	Brown	Black
16	Socket	M39029/5-116	Brown	Brown	Blue
16	Pin	M39029/4-111	Brown	Brown	Brown
12	Socket	M39029/5-118	Brown	Brown	Grey
12	Pin	M39029/4-113	Brown	Brown	Orange

* Thrmocouple Contacts(온도보상 Contacts)

Contact size	Alumei	Chromal
20 Pin	A 30 - 1831	C 30 - 1832
20 Socket	A 31 - 1013	C 31 - 1014

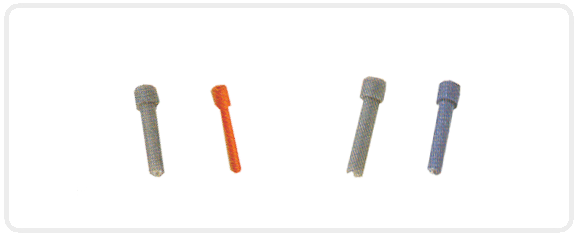

WIRE HOLE FILLERS

Contact size	Part Number		Color Code
Contact size	Military	Superseded Mil. Pt. No.	Color Code
20	MS27488-20	MS3187-20 M83723/28-20	Red
16	MS27488-16	MS3187-16 M83723/28-16	Blue
12	Ms27488-12	MS3187-12 M83723/28-12	Yellow

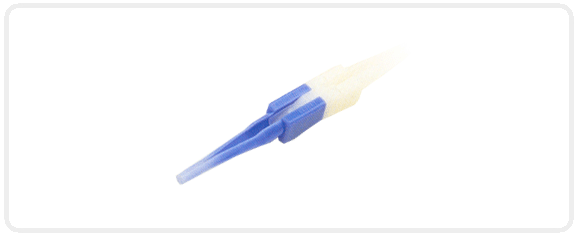

INSERTION / EXTRACTION TOOLS

Contact size	Wired Contact Tools		Unwired Contact Tools
Contact size	Mil. Pt. No	Superseded Mil. Pt. No	Unwired Contact Tools
20	M81969/14-02	MS27534-20 MS3447-20 NAS1664-20	U274-7007
16	M81969/14-03	MS27534-16 MS3447-16 MAS1664-16	U274-7008
12	M81969/14-04	MS27534-12 MS3447-12 NAS1664-12	U274-7009

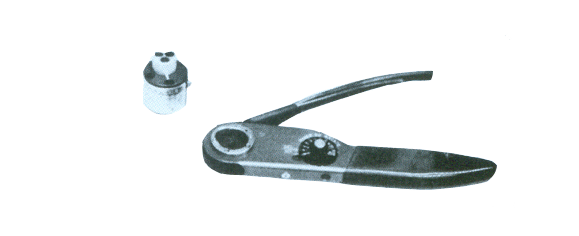

CRIPM TOOL
