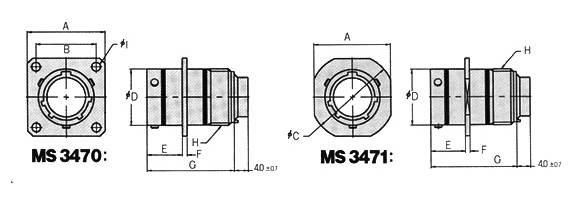

MS3470 : Narrow Flange Mount Receptacle      MS3471 : Cable Connecting Receptacle
Shell
size		 A
(Max)

B

 Φ C

Φ D

E F G
Max		 H
Thread-2A		 Φ 1

8

 21.03 15.08 23.33~24.33 11.89~12.04 10.95~11.73 1.17~1.98 30.86 1/2-20UNEF 3.05

10

 24.23 18.26 26.47~27.48 14.86~15.01 10.95~11.73 1.17~1.98 30.86 5/8-24UNEF 3.05

12

 26.59 20.62 28.85~29.87 18.92~19.07 10.95~11.73 1.17~1.98 30.86 3/4-24UNEF 3.05

14

 28.98 23.01 31.24~32.26 22.10~22.25 10.95~11.73 1.17~1.98 30.86 7/8-20UNEF 3.05

16

 31.34 24.61 33.63~34.65 25.27~25.42 10.95~11.73 1.17~1.98 30.86 1-20UNEF 3.05

18

 33.73 26.97 36.02~37.03 38.45~28.60 10.95~11.73 1.17~1.98 30.86 1 1/16-18UNEF 3.05

20

 36.91 29.36 39.17~40.18 31.62~31.77 14.12~14.91 1.98~2.79 32.39 1 3/16-18UNEF 3.05

22

 40.08 31.75 42.37~43.38 34.80~34.95 14.12~14.91 1.98~2.79 32.39 1 5/16-18UNEF 3.05

24

 43.26 34.93 45.52~46.53 37.97~38.12 14.96~15.75 1.98~2.79 32.39 1 7/16-18UNEF 3.73

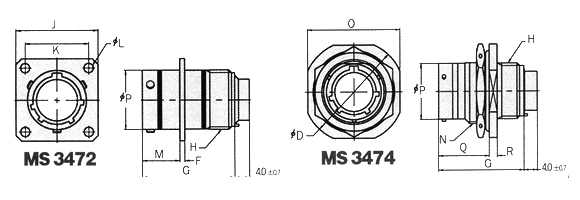

MS3472 : Narrow Flange Mount Receptacle      MS3474 : Jam Nut Recptacle

J
Max		 K

Φ L

 M

O

 Φ D Φ P Q R S
Thread~2B
27.05 18.64 3.56~4.06 11.73~12.52 23.44~24.23 26.59~27.38 11.96 16.71~17.95 2.19~2.87 0.5625-24UNEF

28.98

 20.62 3.56~4.06 11.73~12.52 26.59~27.38 29.77~30.56 15.01 16.71~17.95 2.19~2.87 0.6875-24UNEF

32.16

 23.83 3.56~4.06 11.73~12.52 32.16~31.37 34.54~35.33 19.08 16.71~17.95 2.19~2.87 0.875-20UNEF

34.54

 26.19 3.56~4.06 11.73~12.52 35.33~34.54 37.72~38.58 22.25 16.71~17.95 2.19~2.87 1-20UNEF

36.91

 28.58 3.56~4.06 11.73~12.52 37.72~38.51 40.89~41.68 25.43 16.71~17.95 2.19~2.87 1.125-18UNEF

38.91

 30.56 3.56~4.06 11.73~12.52 40.89~41.68 44.07~44.86 28.60 16.71~17.95 2.19~2.87 1.25-18UNEF

42.88

 32.94 3.56~4.06 14.12~14.91 45.64~46.43 48.84~49.63 31.78 18.31~19.61 2.44~3.76 1.375-18UNEF

44.86

 34.93 3.56~4.06 14.12~14.91 48.84~49.63 51.99~52.78 34.95 18.31~19.61 2.44~3.76 1.5-18UNEF

48.03

 38.10 3.56~4.06 14.96~15.75 51.99~52.78 55.17~55.96 38.13 18.31~19.61 2.44~3.76 1.625-18UNEF
