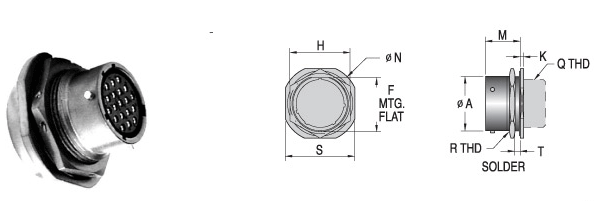

JAM NUT RECEPTACLES
MS3114 (MS service class E, F, P)
 |
| |
Shell
size |
A
± 0.08 |
H
± 0.43 |
K
± 0.05 |
M
+0.08
-0.00 |
N
Max. |
S
Max. |
T
Panel Thickness
Min. Max. |
R Thread
Class 2A |
|
8 |
11.96 |
19.05 |
2.97 |
17.55 |
27.38 |
24.23 |
1.57 |
3.17 |
9/16-24UNEF |
|
10 |
14.93 |
22.22 |
2.97 |
17.55 |
30.56 |
27.38 |
1.57 |
3.17 |
11/16-24UNEF |
|
12 |
19.00 |
26.97 |
2.97 |
17.55 |
35.33 |
32.16 |
1.57 |
3.17 |
7/8-20UNEF |
14 |
22.17 |
30.17 |
2.97 |
17.55 |
38.51 |
35.33 |
1.57 |
3.17 |
1-20UNEF |
|
16 |
25.35 |
33.32 |
2.97 |
17.55 |
41.68 |
38.51 |
1.57 |
3.17 |
1-1/8-18UNEF |
|
18 |
28.52 |
36.25 |
2.97 |
17.55 |
44.86 |
41.68 |
1.57 |
3.17 |
1-1/4-18UNEF |
|
20 |
31.70 |
39.67 |
3.76 |
22.33 |
49.63 |
46.43 |
1.57 |
6.35 |
1-3/8-18UNEF |
|
22 |
34.87 |
42.87 |
3.76 |
22.33 |
52.78 |
49.63 |
1.57 |
6.35 |
1-1/2-18UNEF |
|
24 |
38.05 |
46.02 |
3.76 |
23.16 |
55.96 |
52.78 |
1.57 |
6.35 |
1-5/8-18UNEF |
|
| |

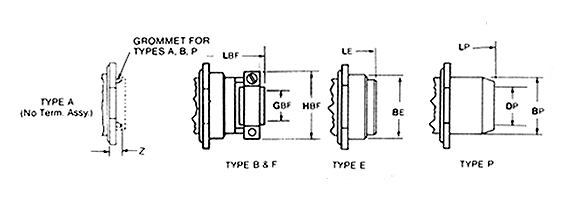

TERMINATION ASSEMBLIES
 |
Shell
size |
TYPE A |
TYPE B AND F |
TYPE E |
TYPE P |
Z
Max. |
HBF
Max. |
GBF
Min. |
LBF
Max. |
BE
Max. |
LE
Max. |
BP
Max. |
DP
Min. |
LP
Max. |
|
8 |
7.92 |
21.03 |
2.92 |
48.41 |
15.44 |
34.14 |
15.44 |
8.05 |
35.33 |
|
10 |
7.92 |
22.63 |
4.52 |
48.41 |
18.64 |
34.14 |
18.64 |
11.02 |
35.33 |
|
12 |
7.92 |
25.81 |
7.67 |
48.41 |
21.79 |
34.14 |
21.79 |
13.92 |
35.33 |
14 |
7.92 |
28.98 |
9.27 |
48.41 |
24.99 |
34.14 |
24.99 |
17.09 |
35.33 |
|
16 |
7.92 |
30.56 |
12.45 |
51.99 |
28.19 |
34.14 |
28.19 |
20.27 |
35.33 |
|
18 |
7.92 |
37.31 |
15.62 |
52.78 |
31.34 |
34.14 |
31.34 |
22.83 |
35.33 |
|
20 |
4.90 |
37.31 |
15.62 |
59.13 |
34.54 |
40.49 |
34.54 |
26.01 |
41.68 |
|
22 |
4.90 |
42.06 |
18.80 |
59.13 |
37.69 |
40.49 |
37.69 |
29.18 |
41.68 |
|
24 |
3.81 |
44.45 |
20.07 |
62.31 |
40.89 |
41.68 |
40.89 |
32.36 |
43.26 |
|
|
|
