Home > Á¦Ç°Á¤º¸> MSÄ¿³ØÅÍ







MIL-C-26482 Series I Ä¿³ØÅÍ´Â ¼ÒÇüÀ¸·Î¼­ Àü±âÀû ±â°èÀû ¹× ȯ°æÀû Ư¼ºÀÌ ¿ì¼öÇÏ¿© ÁÖ·Î ±º¿ë Åë½ÅÀåºñ¿¡ ³Î¸® ¾²À̰í ÀÖÀ¸¸ç, 5°³¼ÒÀÇ ¾È³» Ű(Guide Key)°¡ ÀÖ¾î È®½ÇÇÏ°í ¾ÈÁ¤µÈ °áÇÕÀÌ ÀÌ·ç¾îÁö´Â Ä¿³ØÅÍÀÔ´Ï´Ù. ¶ÇÇÑ º£ÀÌ´Ö(Bayonet)°áÇÕ¹æ½ÄÀ¸·Î °áÇսð£ÀÌ ¸Å¿ì ªÀº ÀåÁ¡ÀÌ ÀÖ½À´Ï´Ù.

º» È­¸é¿¡¼­´Â ¿©·¯ Á¾·ùÀÇ ¼ÒÇü Ä¿³ØÅÍÁß¿¡¼­ ÄÉÀ̺íÀÇ Á¢¼ÓÀ» ³³¶«(Soldering)À¸·Î ÇÏ´Â YH3110 ½Ã¸®ÁîÀÇ EÇüÀ» ±âÁØÇÏ¿´À¸¸ç, ±âŸ ´Ù¸¥ Type, µî±Þ, Çü»ó, Á¢¼Ó¹è¿­µî ¿¡ °üÇÏ¿©´Â º°µµ·Î ¹®ÀÇ ¹Ù¶ø´Ï´Ù.


The MIL-C-26482 Series I connector is widely used for the military communication system since it is small sized and the electrical, mechanical, and environment properties are excellent. The 5 guide key makes it easy and short to mate the connector with bayonet mating way.

We displayed the E-type of MS3110 series of the connector with soldering cable. Please ask questions anytime for and other types, classes, shapes, and mating procedures



Åë½ÅÀåºñ, ¼ö¼ÛÂ÷·®, ÀÇ·á±â±â ¹× °èÃø±â±â, ÀÏ¹Ý »ê¾÷±â°è ¹× ±â±â, ±âŸ °¢Á¾ Àü±â¡¤ÀüÀÚ±â±â.



Communication equipment, transport vehicles, medical and measurement instruments, industrial machines, electrical and electronic devise.

A cross sectional diagram("E" Class)



»ç¿ë¿Âµµ (Temperature range)

-55¡É ~ 125¡É


³»±¸¼º ( Durability)

ÃÖ¼Ò 500ȸ °áÇÕ ¹× ºÐ¸®.
minimum 500 mating and unmating operations.


Ãæ°Ý°ú Áøµ¿ ( Shock and vibration)

½ÃÇè¿ä±¸¿¡ µû¶ó Ãæ°Ý°ú Áøµ¿½ÃÇè½Ã Àü·ù ºÒ¿¬¼ÓÀÌ 1ms ÀÌÇÏ¿©¾ß ÇÔ.
The current flows shall be suspended for any discontinuity of less than 1ms for the requirement of
shock and vibration test.


Ãæ°Ý ( Shock)

Ãæ°ÝÀº 50GÀÇ »çÀÎÆÄ Ãæ°ÝÀ» 3°÷ÀÇ Ãà¹æÇâÀ¸·Î 11millisecond µ¿¾È Àΰ¡ÇÔ.
The connectors shall be subjected to shock of three mutually perpendicular axes.
The pulse shall be the sine wave of impulse of 50G with a duration of 11 milliseconds.


Áøµ¿ (Vibration)

·£´ýÁøµ¿À» Á֯ļö¹üÀ§ 10¿¡¼­ 2000Hz¿Í 15GÀÇ ÃÖ»óÁ¡À» 12½Ã°£ °¡ÇÔ.
The duration shall be 12 hours for random vibration in the frequency ranges from 10 to 200§Ô and at
maximum point of 15G.

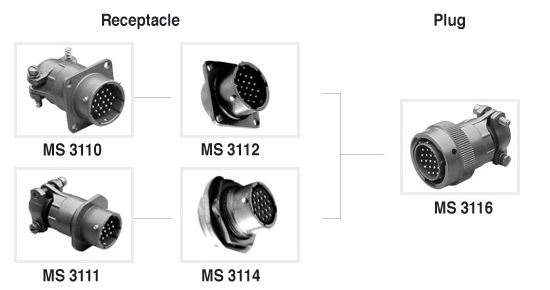

Shell Types

MS Designation

3110

Wall mounting receptacle

3111

Cable connecting plug

3112

Box mounting receptacle (Class E only)

3114

Jam nut receptacle

3116

Straight plug

3119

Thru-bulkhead receptacle (Class E only)





Class

MS class

Application

A

General duty

B

General duty with strain relief without grommet & ferrules

E

Grommet seal except on 02 and 3112

F

grommet seal with strain relief

J

Water tight gland seal with strain relief for jacketed cable

P

Potted



Shell Size

8, 10, 12, 14, 16, 18, 20, 22, and 24


Contact Arrangement

See, MIL-STD-1669


Contact Style

P - PIN S - SOCKET


Alternate Insert Position

W. X. Y. Z. (Ref. : MIL-STD-1669)








Voltage

Altitude

Test voltage

ft.

m

I

II

Sea level

-

1500

2,300

50,000

15,240

500

750

70,000

21,336

375

500

100,000

30,480

200

200



Contact current capacity and retention

Contact Size *

test current

Contact retention
 axis direction

lb

N

20

7.5

15

66.7

16

13.0

25

111.2

12

23.0

30

133.4



Admissible wire

Contact

Admissible wire

Size

Inter diameter of soldering port (under)

Size (AWG)

20

¨ª 1.07

24, 22, 20

16

¨ª 1.75

20, 18, 16

12

¨ª 2.84

14, 12



Materical and surface finish

Shell

Aluminum Alloy, Cadmium Plating (Light Green)

Insulator

Synthetic Rubber

Grommet & Sealing

Synthetic Rubber, Silicon Rubber

Contact

Copper Alloy, Gold Alloy
